Three
chassis mounting points, one for the driveshaft, two for the I-arm.
Three
upright mounting points, one for the driveshaft, two for the I-arm.
Either the OEM style with the drive shaft as the top link, or modified with a bespoke top link.

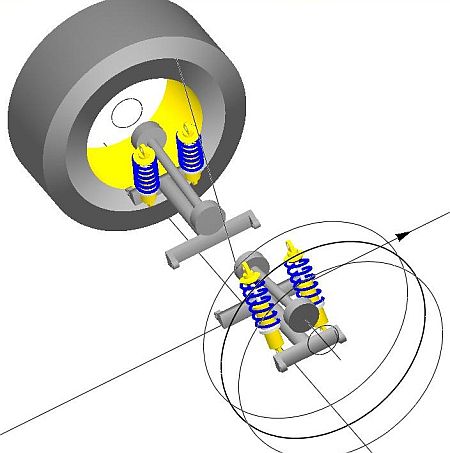

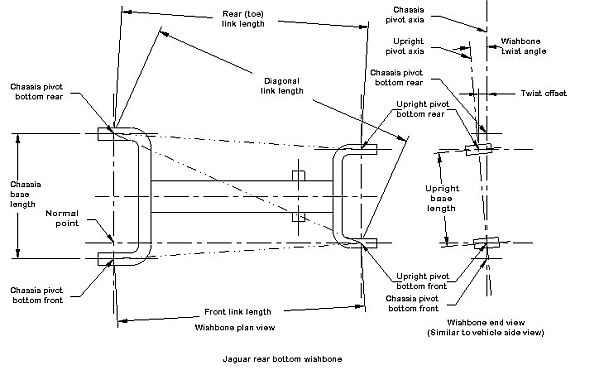

In the Jaguar IRS all driving and braking loads are reacted by the lower lateral I -arm in torsion and bending. Reactions to all wheel centre inputs in the longitudinal direction result in torsional loading of the lower member. The fixed length (and fixed universal joints) driveshaft acts as the upper camber control link and controls the front view instant centre. The side view instant centre is controlled solely by the lower member.The
chassis top pivot point corresponds to the inboard driveshaft universal
joint centre.
The
upright top pivot point corresponds to the outboard driveshaft universal
joint centre, and only the lateral value is entered.
The
toe control pivot points are already established as part of the basic suspension
geometry. There is only the capability to display the toe changes.
There is no option to specify the Driveline configuration since these points have already been specified within the Chassis Geometry, and the calculation style is always“Fixed†as the driveshaft cannot change length. |
