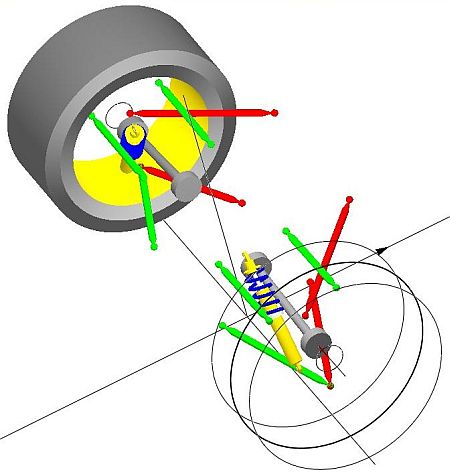

The Plymouth Prowler rear suspension is typical of this configuration.
|
Five
chassis mounting points, two for the lower A-arm,
one for each of the upper lateral links, and one for the trailing link.
The upper lateral links are generally parallel (in plan view) and symmetrically
disposed about the axle centreline.

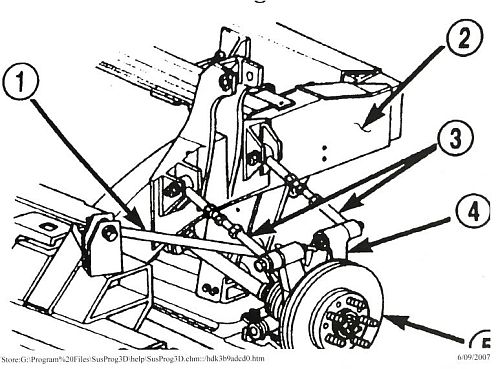

Four upright mounting points, one for the lower A-arm, one for each upper lateral link, and one for the trailing link.
1
Trailing link
2 Chassis 3 Upper lateral links 4 Upright 5 Disk rotor and wheel hub |
